连续单频窄线宽激光器
STNLFL Series STNLSL Series Order Now!

SIMTRUM's latest innovation, a Single-frequency Narrow-linewidth CW fiber laser, harnesses an erbium-doped fiber DFB laser cavity to deliver a 1550nm single longitudinal mode laser. With a spectral linewidth under 3kHz and side-mode suppression ratio exceeding 60dB, it offers a typical output power of 50mW, with higher power versions available. Available in both module and desktop forms, this laser is perfectly suited for distributed sensing and other precision applications.



 793/808/915/976nm_High_Power_Laser

Features

  • Spectral linewidth ≤ 3KHz
  • All-fiber DFB resonant cavity
  • Stable wavelength and no mode hopping

Applications

  • LiDAR
  • Acoustic sensing, hydrophone
  • Fiber optic distributed sensing



SIMTRUM_STNLFL_Optical_Spectrum  SIMTRUM_STNLFL_Spectral



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF



Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1550 ±0.1 1545~1560nm can be customized
Wavelength Spectrum kHz ≤3 *3dB Linewidth = 20dB Linewidth/20
Linewidth @3dB Side dB ≥60
Side Mode Suppression Ratio dB ≤ ±25
Laser Operation Mode - CW Continuous light
Output Power mW 50/100/200/500
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - SMF-28 PM1550
Fiber connector - FC/APC FC/APC
(slow axis alignment)



General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <30W DC 5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×31.5(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/ Product Code
Series Wavelength(nm) Output Power(mW) Justable Power (Optional) Fiber Packaging
STNLFL 1550 50/100/200/500 *T SM - SMF-28 B - Desktop
PM - PM1550 M - Module

Introducing SIMTRUM's advanced CW Single-frequency Narrow-linewidth Fiber Laser STNLSL Series, featuring an ultra-narrow linewidth external cavity semiconductor laser chip. Emitting at 1550nm, this laser produces a single longitudinal mode with a spectral linewidth under 100kHz. Available with single-mode or polarization-maintaining fiber coupling outputs, it is offered in both module and desktop forms. This cost-effective laser is ideally suited for distributed sensing applications, combining high performance with exceptional value.



 793/808/915/976nm_High_Power_Laser

Features

  • Spectral linewidth ≤ 100KHz
  • All-fiber DFB resonant cavity
  • Stable wavelength and no mode hopping

Applications

  • LiDAR
  • Acoustic sensing, hydrophone
  • Fiber optic distributed sensing

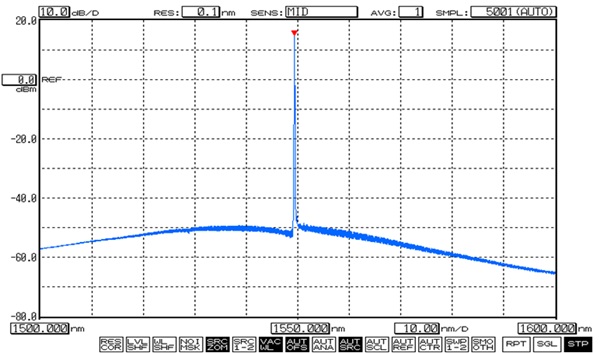

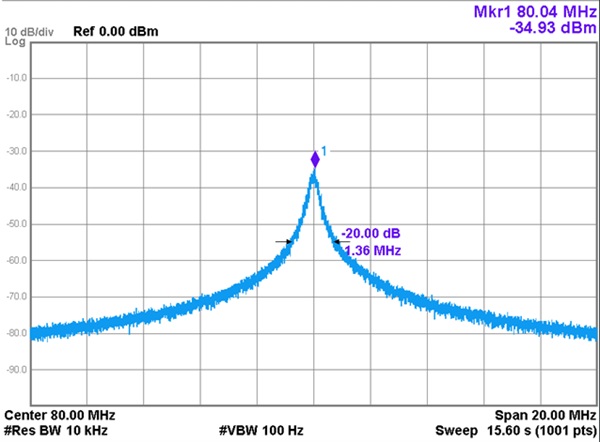

SIMTRUM_STNLSL_Optical_Spectrum  SIMTRUM_STNLsL_Spectral



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF



Optical Parameters Unit Typical Value Remarks
Wavelength Range nm 1550 ±0.1
Wavelength Spectrum kHz ≤100 *3dB Linewidth = 20dB Linewidth/20
Linewidth @3dB Side dB ≥50
Side Mode Suppression Ratio dB ≤ ±100  @8H
Laser Operation Mode - CW Continuous light
Output Power mW 20/50/100
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - SMF-28 PM1550
Fiber connector - FC/APC



General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <30W DC 5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 70(W)×90(D)×15(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/ Product Code
Series Wavelength(nm) Output Power(mW) Fiber Packaging
STNLSL 1550 20/50/100 SM - SMF-28 B - Desktop
PM - PM1550 M - Module




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STNLFL-1550-50-SM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 50mW, Optical fiber SMF-18, output type FC/APC Connector 		In Stock $4805.00
STNLFL-1550-100-SM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 100mW, Optical fiber SMF-18, output type FC/APC Connector 		In Stock $5766.00
STNLFL-1550-200-SM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 200mW, Optical fiber SMF-18, output type FC/APC Connector 		In Stock $6087.00
STNLFL-1550-500-SM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 500mW, Optical fiber SMF-18, output type FC/APC Connector 		In Stock $8009.00
STNLFL-1550-1000-SM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 1000mW, Optical fiber SMF-18, output type FC/APC Connector 		In Stock $8489.00
STNLFL-1550-50-PM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 50mW, Optical fiber PM1550, output type FC/APC Connector 		In Stock $4965.00
STNLFL-1550-100-PM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 100mW, Optical fiber PM1550, output type FC/APC Connector 		In Stock $5926.00
STNLFL-1550-200-PM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 200mW, Optical fiber PM1550, output type FC/APC Connector 		In Stock $6247.00
STNLFL-1550-500-PM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 500mW, Optical fiber PM1550, output type FC/APC Connector 		In Stock $8329.00
STNLFL-1550-1000-PM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 3KHz, Output Power 1000mW, Optical fiber PM1550, output type FC/APC Connector 		In Stock $8810.00
STNLSL-1550-20-SM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 100KHz, Output Power 20mW, Optical fiber SMF-18, output type FC/APC Connector 		In Stock $1762.00
STNLSL-1550-50-SM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 100KHz, Output Power 50mW, Optical fiber SMF-18, output type FC/APC Connector 		In Stock $2242.00
STNLSL-1550-100-SM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 100KHz, Output Power 100mW, Optical fiber SMF-18, output type FC/APC Connector 		In Stock $2323.00
STNLSL-1550-20-PM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 100KHz, Output Power 20mW, Optical fiber PM1550, output type FC/APC Connector 		In Stock $2082.00
STNLSL-1550-50-PM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 100KHz, Output Power 50mW, Optical fiber PM1550, output type FC/APC Connector 		In Stock $2563.00
STNLSL-1550-100-PM-B
CW Single-frequency Narrow Linewidth Fiber Laser 1550nm, operation wavelength 1550 ±0.1 nm, Spectral linewidth ≤ 100KHz, Output Power 100mW, Optical fiber PM1550, output type FC/APC Connector 		In Stock $2723.00
