激光窄滤波器

激光带通滤光片组是一组光学滤光片,旨在选择或传输来自激光源的特定波长范围,同时阻挡或衰减不需要的波长。这组滤光片在激光的精度和纯度至关重要的应用中至关重要。该组通常包括:带通滤光片、二向色镜(或分光镜)、长通和短通滤光片(边缘滤光片)。



激光带通滤光片组的主要目的是确保只有所需波长才能到达目标或探测器,通过提高信噪比、改善对比度或隔离特定光谱线进行分析或成像来增强系统性能。这些滤光片组在各种应用中都必不可少,包括荧光显微镜、拉曼光谱、激光成像和光通信,在这些应用中,精确控制激光特性对于准确性和效率至关重要。

宽场光源与激光光源对滤光片的要求有所不同,主要表现在以下几个方面:​ ​
1.激光器 具有非常好的单色性 , 需要带宽较窄的激励 片 ;
2 .通常实验对反射激光束的质量有一定的要求,所用的二向色镜需要有较好的平整度,才能反射激光的波前。畸变是​​​​​​​​​​​​最小化;
3 .激光能量密度较高,发射器需要较高的截止深度( O D值)以降低激光的激发噪声。

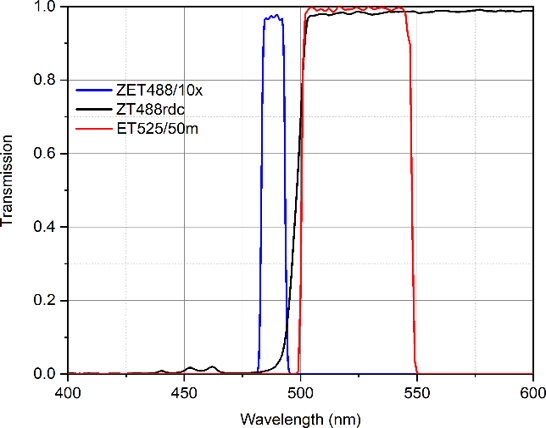

488nm 激光单波段滤光片组
光源类型 激励芯片带宽 二向色镜平面度 发射机
LED / 水银灯 / 卤素灯 / 白光 >/= 20 nm </=10 waves/inch OD5abs @ Ex and Em intersections
激光 </= 20 nm </=2 waves/inch OD6abs @ laserline
1.TIRF、STORM、PALM 、STED等激光应用 对二向色镜平整度和发射极截止深度有不同的要求, 请参考相关部分;
2.多光子、SHG、CARS和SRS等激光应用 对屏蔽截止深度有不同的要求,如相应的章节所述。

ET 系列 - 激光单波段带通滤光片组

滤片组 激发滤光片
(CWL/FWHM)nm
二向色镜
(RWL)nm
发射机
(CWL/FWHM)nm
激光波长(nm)
49901 405/20 405 460/50 400 - 410
49902 436/20 442 480/40 430 - 445
49903 436/20 442 500/40 430 - 445
49904 488/10 488 525/50 485 - 491
49905 514/10 514 545/40 511 - 517
49906 514/10 514 575/50 511 - 517
49907 532/10 532 575/50 529 - 535
49908 532/10 532 590/50 529 - 535
49909 561/10 561 600/50 557 - 563
49910 561/10 561 630/75 557 - 563
49911 594/10 594 645/75 591 - 596
49914 642/20 647 705/72 633 - 650

ET 系列-激光单波段长通滤光片组​

滤片组 激发滤光片
(CWL/FWHM)nm
二向色镜
(RWL)nm
发射机
(CWL/FWHM)nm
激光波长(nm)
49912 594/10 594 610 355 - 375
49913 635/20 640 655 591 - 596
49915 365/20 365 425 633 - 640

ET 系列 - 激光多波段滤光片组

滤片组 激光波长
395 nm 405 nm 442 nm 488 nm 514 nm 532 nm 561 nm 594 nm 640 nm 647 nm
59901   •   •
59902     •   •
59903     •     •
59904       •     •
59905       •       •
59906       •         •
59907           •     •
69901   •   •     •
69902   •   •       •
69904     •   •   •
69905     •   •     •
89901v2   •   •     •   •
89902   •   •     •     •
89904 •   •   •   •   •
  • 405 nm 激光用于光激活
*注:价格不包括任何运费、税费或清关费用

Chroma PCR 滤光片 采用 先进的磁控溅射镀膜工艺 ,具有高透过率、高截止深度、高陡度等特点。基于常用的荧光探针,设计了滤光片的中心波长和带宽,​​​​​​​​​​ 滤波器经过重新优化,避免了相邻通道之间的泄漏,并为PCR实验提供了最佳的信噪比。

通过精细的层设计和优化、精确的镀膜工艺控制,Chroma还提供多波段PCR滤光片组,可减少仪器中的滤光片数量,满足仪器小型化的需求。

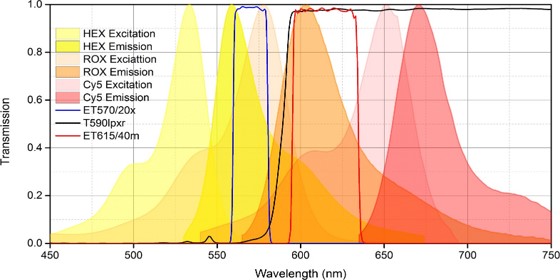

单带PCR滤光片组

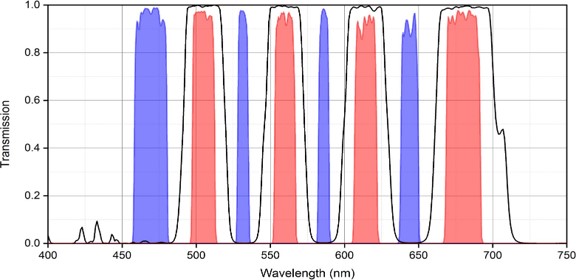

四带PCR滤光片组

五色PCR滤光片组


PCR 滤片组

适用 PCR 染料

FAM Set

FAM, SYBR Green, EvaGreen

HEX Set

HEX, VIC, JOE

ROX Set

ROX, Texas Red

Cy5 Set

Cy5, Qusar 670

Cy5.5 Set

Cy5.5, Qusar 705

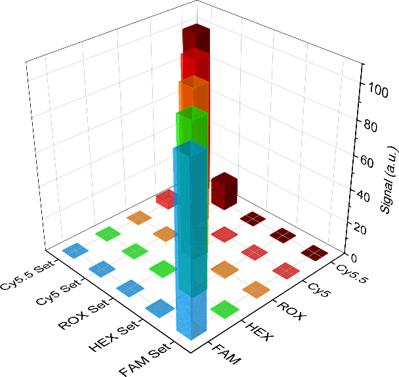

五色PCR滤膜组渗透率计算结果
Seven-color PCR filter set

PCR 滤片组

适用 PCR 染料

Atto 425 Set

Atto 425

FAM Set

FAM, SYBR Green, EvaGreen

HEX Narrow Set

HEX, VIC, JOE

Atto 550 Set

TAMARA, Cy3, Atto 550

ROX Narrow Set

ROX, Texas Red

Cy5 Set

Cy5, Qusar 670

Cy5.5 Set

Cy5.5, Qusar 705

右图显示了串色分析​​​​​​​

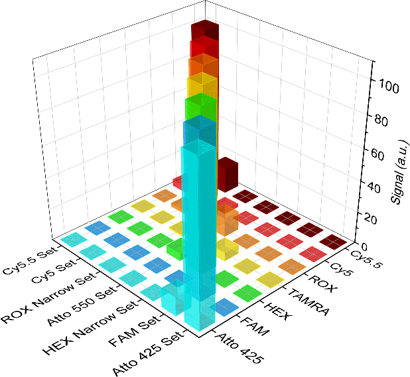

七色PCR滤膜组渗透率计算结果




超平二向色镜

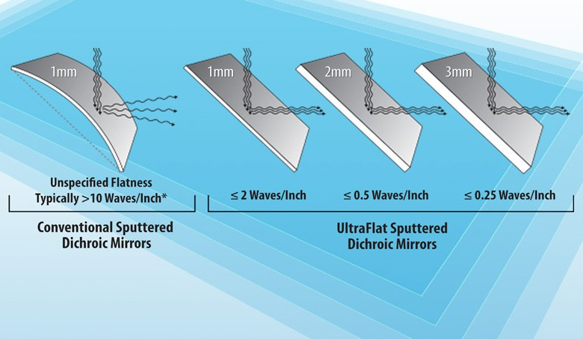

色差二向色镜采用 磁控溅射镀膜技术,具有膜层密度高、光谱特性优良、环境耐受性好等特点。但磁控溅射镀膜会对基体产生 较大的应力,​​​​​​​ 导致基板产生一定程度的弯曲。在激光应用中,如果二向色镜具有一定的曲率半径,反射的激光光将变成发散光或集中光,​​​​​​​​​​​​​​ 导致光束质量不佳,影响实验结果或仪器性能。另外,二向色镜的平整度是决定反射成像质量的关键因素​​​​​​​​​​​​​​​​​​​​ 反射成像光路中的光路。
Chroma拥有专利 的 控制二向色镜平整度的工艺,可以消除层应力的影响,并根据应用需求提供具有不同平整度的二向色镜(超平系列)。



UltraFlat 系列 基材厚度(mm) 表面平整度(nm) 典型应用
UF1 1 </= 2 波/英寸 P-V @ 632.8 共聚焦、双光子、CARS/SRS、流式细胞术等
UF2 2 </= 0.5 波/英寸 P-V @ 632.8 TIRF, PALM, STORM
UF3 3 </= 0.25 波/英寸 P-V @ 632.8 STED, 结构化照明
>/= 5  </= 0.1 波/英寸 P-V @ 632.8 定制应用

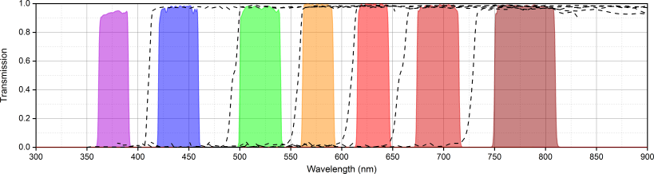

荧光带通滤光片 和 光谱二向色镜在流式细胞术中,不同的染料组合对应不同的滤光片选择,这取决于信噪比和渗透考虑。​​​​​​​​​​​​​​​​​请联系Chroma讨论具体协议细节。以下是荧光带通滤光片和光谱变色镜的典型光谱。
