1570nm 连续波单模光纤激光器 | 瑆创光学电子商店

1570nm连续光纤耦合激光器

SIMTRUM提供的1570nm 波段单波长激光器采用高性能蝶形半导体激光芯片,专业设计的驱动与温控电路控制保证激光器安全工作,输出功率和光谱稳定。适合作为掺铥光纤激光器或光纤放大器的泵浦激光源,可以提供台式或模块式封装。

793/808/915/976nm_High_Power_Laser

特性

  • 单模或保偏光纤输出
  • 功率和光谱稳定

应用

  • 掺铥光纤泵浦
  • 光纤激光器
  • 光器件测试

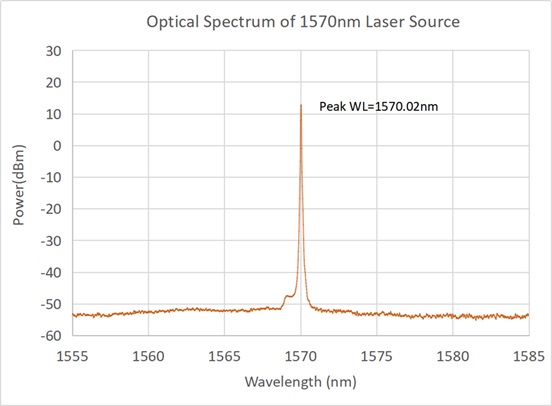

SIMTRUM_STFL1550_Optical_Spectrum



Product specifications and Brochures

光学指标 单位 典型值 备注
工作波长 nm 1570;1590
波长精度 nm ±1
光谱线宽 nm < 0.1
边模抑制比 dB ≥50
工作模式 - CW 连续光
输出功率 mW 10/20/50/100/200/400/500 低光功率
dBm 30/33/35/37/40 高光功率
短期稳定度(15 分钟) dB ≤ ±0.02 等效≤±0.5%
长期稳定度(8 小时) dB ≤ ±0.05 等效≤±1.2%
偏振态 - 随机 线偏振
偏振消光比PER dB - >23
光纤类型 - SMF-28 PM1550
光纤连接头   FC/APC FC/APC(慢轴对准)



电气和环境参数 台式 模块
控制方式 触屏/RS232 串口通信 RS232 串口通信
通信接口 DB9 Female DB9 Female
供 电 AC 100~240V,150W DC5V, 30W DC12V, 80W
低光功率(mW)*注1 100/200/300/400 500 100/200/300/400 500
尺寸或代码 B1 B2 M20 M31
高光功率(dBm) 30/33/35 37/40 30/33/35 37/40
尺寸或代码 B2 B3 M31 M70
工作温度湿度范围 -5~+35°C;0~70%



订购信息/型号
型号 工作波长(nm) 输出功率 输出光纤类型 封装形式
FL 1570/1590 10/20/50/100/200/400/500 (mW) SM= SMF-28 M20/M31/M70=模块
FLH 30/33/35/37/40 (dBm) PM=PM1550 B1/B2/B3=台式

               *注1:代码尺寸对应关系:

               B1:255(W)×285(D)×115(H)mm,B2:255(W)×322(D)×115(H)mm,376(W)×340(D)×112(H)mm

               M20:125(W)×150(D)×20(H)mm,M31:125(W)×150(D)×31.5(H)mm,M70:139(W)×235(D)×70(H)mm


型号 波长选择 光谱线宽 输出功率
 450-940nm连续光纤耦合激光器 405-940 nm - 5/25/30/40/50/80/90mW
 974/976nm连续光纤耦合激光器 793/808/878.6/915/940/976 nm 0.5/0.7/3/6nm 5/8/10/12/20/25/30W
 793/808/915/976nm高功率连续光纤耦合激光器 974/ 976 nm - 200 - 1000mW
 1030/1064nm连续光纤耦合激光器 1064 nm < 0.1nm 100mW - 10W
 1120nm连续光纤耦合激光器 1120 ≤ 0.1nm 5/10W
 1310nm连续光纤耦合激光器 1310 nm ≤ 3MHz 10/20/30/40mW
 1450/1480nm连续光纤耦合激光器 1425/ 1435/ 1455/ 1465/ 1480 nm 0.2nm 200 - 1000mW
 1550nm连续光纤耦合激光器 1550 nm ≤0.1/≤0.5/≤1/≤ 3MHz 10mW - 20W
 1570nm连续光纤耦合激光器 1570/1590 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
 1927/1940nm高功率铥光纤激光器(连续&脉冲) 1927 nm ≤2 nm 10-200 W
 2000nm高功率连续光纤激光器 1900-2000 nm <1 nm 30/70 W
 1940nm高功率准连续铥光纤激光器(连续&脉冲) 1940nm <2nm

最大平均输出70W,最高峰值输出700W


我们在这里为您服务!





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录,我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)



Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFL-1570-10-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 10mW, SMF-28
4-6 Weeks $1270.00
STFL-1570-20-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 20mW, SMF-28
4-6 Weeks $1312.00
STFL-1570-50-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 50mW, SMF-28
4-6 Weeks $1735.00
STFL-1570-100-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 100mW, SMF-28
4-6 Weeks $2116.00
STFL-1570-200-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 200mW, SMF-28
4-6 Weeks $2328.00
STFL-1570-400-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 400mW, SMF-28
4-6 Weeks $2751.00
STFL-1570-500-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm,Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 500mW, SMF-28
4-6 Weeks $3429.00
STFL-1570-10-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 10mW, PM1550
4-6 Weeks $1429.00
STFL-1570-20-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 20mW, PM1550
4-6 Weeks $1508.00
STFL-1570-50-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 50mW, PM1550
4-6 Weeks $2116.00
STFL-1570-100-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 100mW, PM1550
4-6 Weeks $3386.00
STFL-1570-200-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 200mW, PM1550
4-6 Weeks $3810.00
STFL-1570-400-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 400mW, PM1550
4-6 Weeks $4444.00
STFL-1570-500-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 500mW, PM1550
4-6 Weeks $5079.00
STFLH-1570-30-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 30dBm, SMF-28
4-6 Weeks $3746.00
STFLH-1570-33-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 33dBm, SMF-28
4-6 Weeks $4214.00
STFLH-1570-35-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 35dBm, SMF-28
4-6 Weeks $4448.00
STFLH-1570-37-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 37dBm, SMF-28
4-6 Weeks $5853.00
STFLH-1570-40-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 40dBm, SMF-28
4-6 Weeks $9293.00
STFLH-1570-30-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 30dBm, PM1550
4-6 Weeks $5385.00
STFLH-1570-33-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 33dBm, PM1550
4-6 Weeks $5853.00
STFLH-1570-35-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 35dBm, PM1550
4-6 Weeks $6789.00
STFLH-1570-37-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 37dBm, PM1550
4-6 Weeks $7960.00
STFLH-1570-40-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 40dBm, PM1550
4-6 Weeks $10589.00
